Product Details

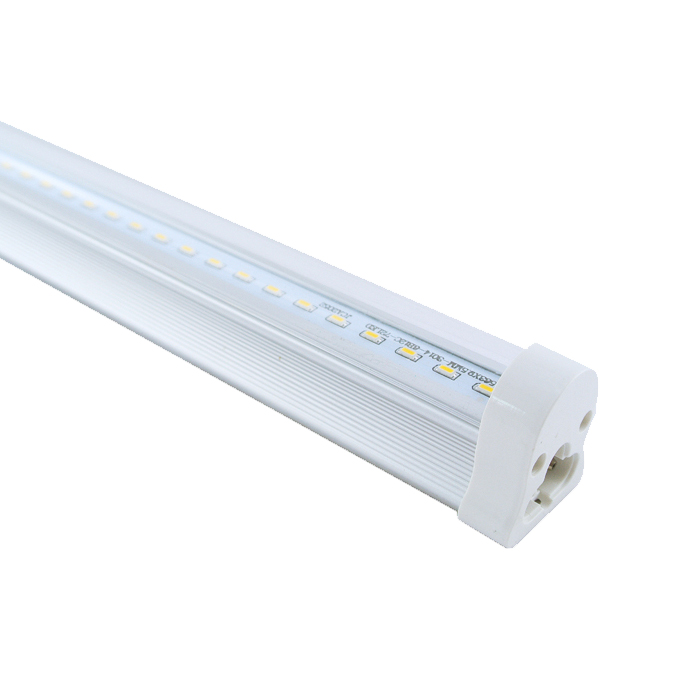

- Name: T5 Integration
- Model: Ecotech-T5-Series
- Specifications: 6w/12w
- Tel: 86-0755-82520108
- E-mail: myd@ecotech-sz.com.cn
Product Introduction
1、Product Description
Professional custom made solution for energy efficiency
2、Application
Schools, hospitals, shopping malls, factories, offices, MRT stations, exhibition hall and apartments
3、Product Feature
high-quality SMT chip lamp beads are selected for soft and comfortable lighting, luminous rate is kept at 80% or above that greatly reduce energy consumption
220-240V AC 50/60HZ input with built-in isolated power supply, safe for use and replacement
PC optical cover, transparent and milky colors are available.
Seamless connection
high-quality SMT chip lamp beads are selected for soft and comfortable lighting, luminous rate is kept at 80% or above that greatly reduce energy consumption
4、Parameters
|
Model |
main optics parameters |
main electric parameters |
Input mode |
||||||
|
Luminous flux |
Color temperature |
CRI |
frequency |
Voltage |
power |
efficiency |
PF |
||
|
Ecotech -T5.06-6MT |
610lm |
2700-3200K 6000-6500K |
Ra≥75 |
50/60Hz |
100~240V |
6W |
≥89% |
≥0.9 |
ACSingle-ended input |
| Ecotech -T5.1.2-12MT | 1083Lm | 12W | |||||||
.
5、Replacement solution
|
Model |
Power |
Life span |
equivalent light power |
equivalent light life span |
Energy reduction |
|
Ecotech -T5.06-6MK |
6W |
30000h~50000h |
14W |
2500h~3000h |
>57% |
|
Ecotech -T5.12-12MK |
12W |
28W |
>57% |

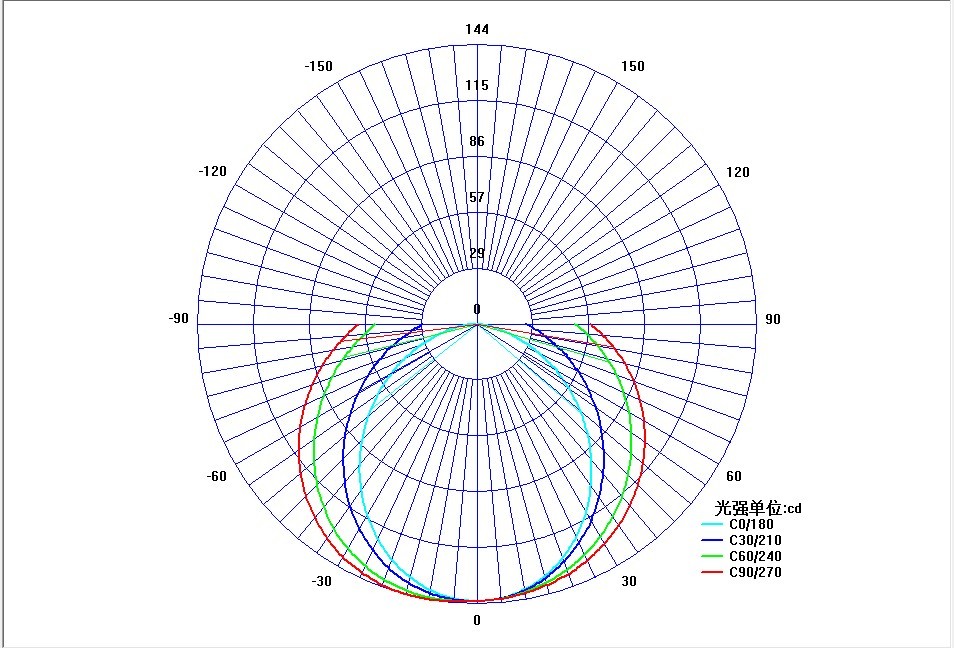

6、light distribution curve
.jpg)

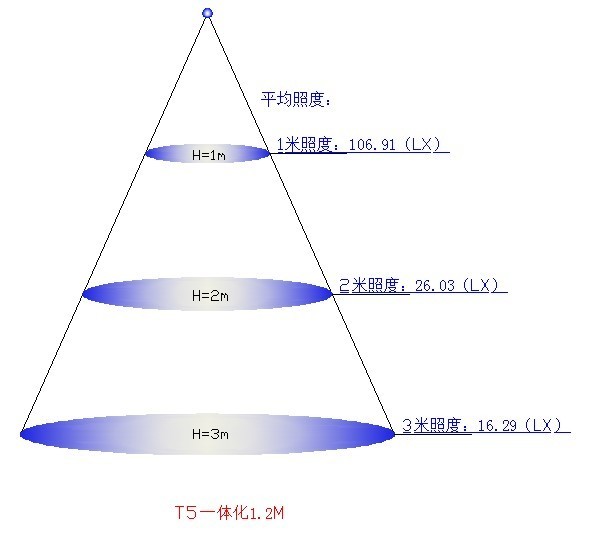

7、Illuminance Diagram
.jpg)
