Product Details

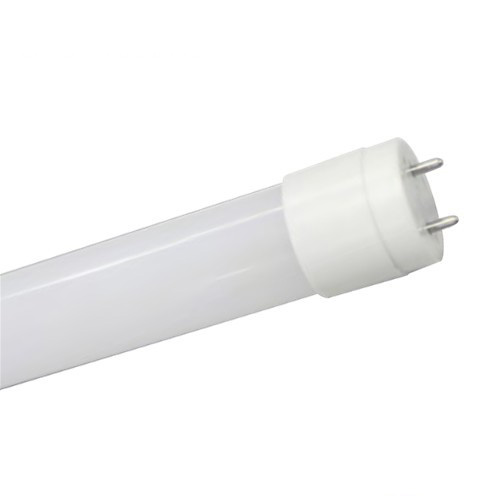

- Name: LED T8 tube
- Model: Ecotech -T8-series
- Specifications:
- Tel: 86-0755-82520108
- E-mail: myd@ecotech-sz.com.cn
Product Introduction
Product Description
Energy efficient alternative, comfortable lighting;
Application: schools, hospitals, shopping malls, factories, offices, MRT stations, exhibition hall and apartments.
Product Features
Material: high-quality aluminum body, stainless steel lighting installation accessories
Driver: 220 - 240V AC 50/60HZ input; isolated power supply, constant current driver, non-glare, no flicker
Chip: high quality LED chip, different color temperature segment, lifetime luminous flux maintenance rate: 80%
Lens: PC optical cover, transparent and milky optional

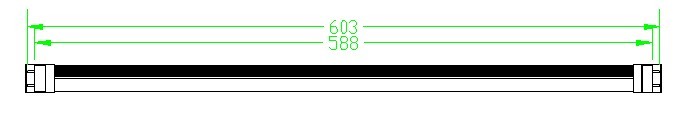

1． dimension
.jpg)
2． Technical parameters
|
Model |
Optics main parameters |
Electric main parameters |
connector |
||||||
|
Luminous flux |
color temperature |
CRI |
frequency |
voltage |
power |
efficiency |
PF |
||
|
Ecotech -T8.06-08MK |
735lm |
2700-3200K 6000-6500K |
Ra≥75 |
50/60Hz |
100~240V |
8W |
≥90% |
≥95 |
G13 |
|
Ecotech -T8.12-16MK |
1486lm |
16W |
|||||||
3． Alternative comparison program
|
Model |
power |
life span |
equivalent light power |
equivalent light life span |
energy reduction |
|
Ecotech -T8.06-08MK |
8W |
30000h~50000h |
18W |
2500h~3000h |
125% |
|
Ecotech -T8.12-16MK |
16W |
36W |
125% |

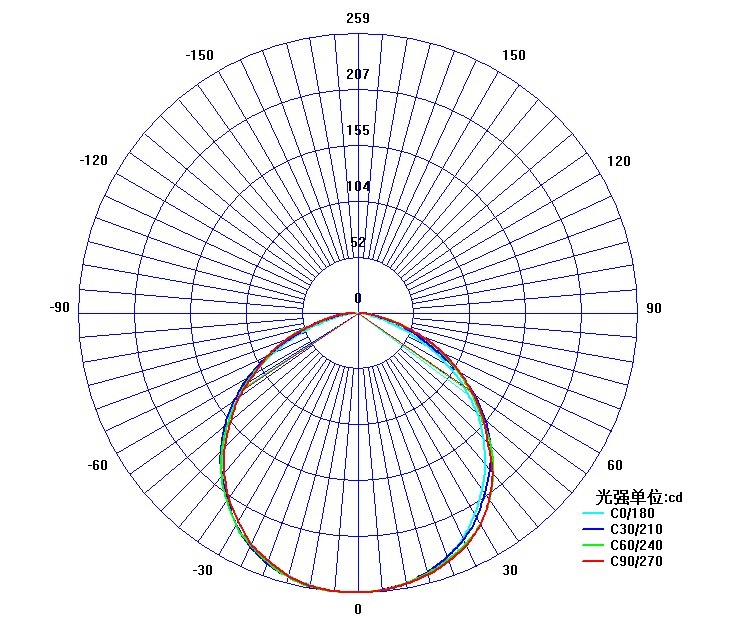

4、Light Distribution
.jpg)

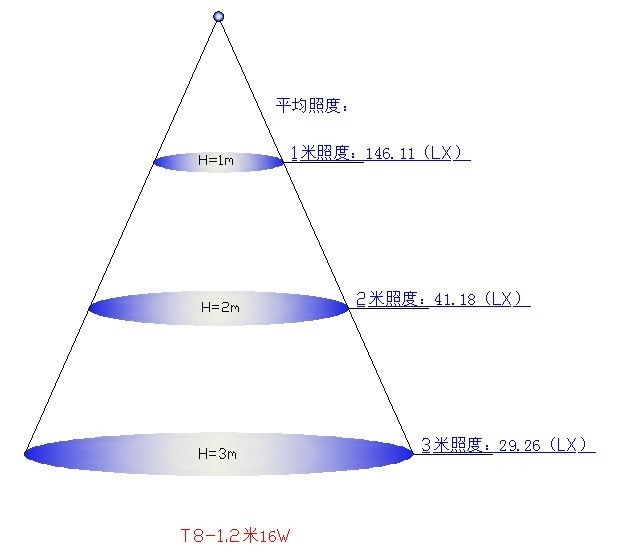

5、Light intensity map
.jpg)
.jpg)
