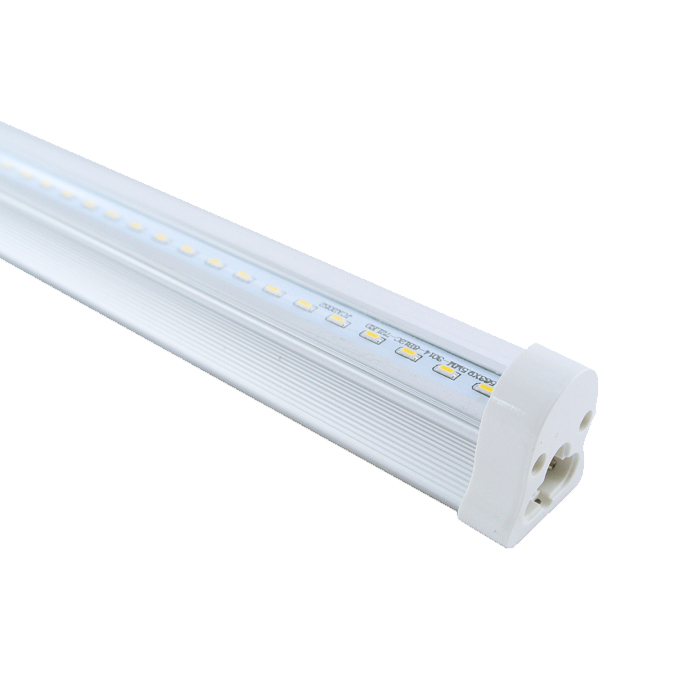

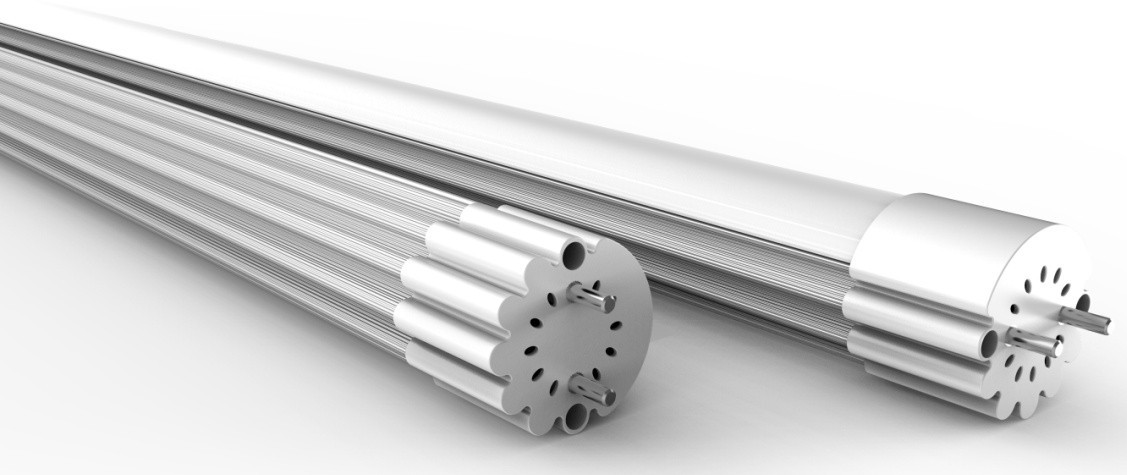

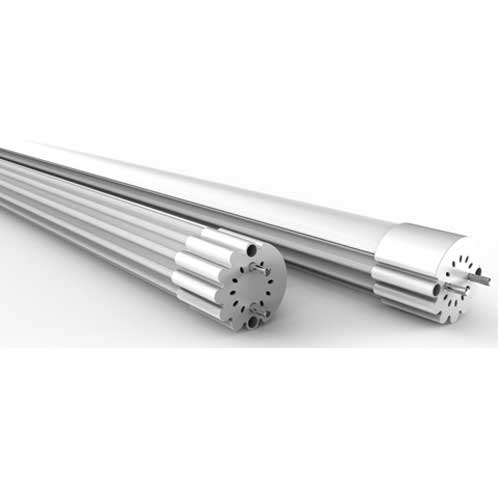

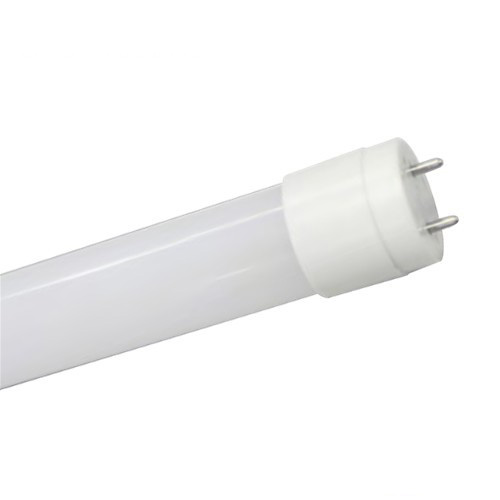

1、Product Picture：

2、Discription

Wave Series LED T8 lamp, optimized design, increase 1/3 of surface area without increasing diameter, improve LED heat dissipation and increase lifespan, patent pending, dimming function with dimming switch, comply with EMC standards, a high product of choice for 5-8 year energy management contract,

3、Feature

patented Efficient heat dissipation design:Unique corrugated tube heat dissipation area double surfface area that of the existing LED lamp, less light decay, long life, more stable performance;

High-efficiency power supply: Isolated power supply efficiency as high as 85-89%, 92-96% for non-isolated power supply; long service life, higher luminous efficiency, high energy efficient;

High luminous efficiency: Use high quality CREE light source, good color consistency, light efficiency of 98-108LM / W

Unique design: Aluminum body, seamless integration between PCB board and heat sink, better thermal conductivity, better heat dissipation; better performance;

Intelligent Control:Gradually light up function,, an upgraded version has power line carrier decoding circuit, can use dimmer switch to have dimming function.

Energy-saving: No mercury, no UV, no flicker, 50-60% energy saving compared with fluorescent lamps, lamp lifespan up to 5-8 years;

4、Applications

Best used in schools, workshops, shopping malls, exhibition halls, hospitals, offices or home.

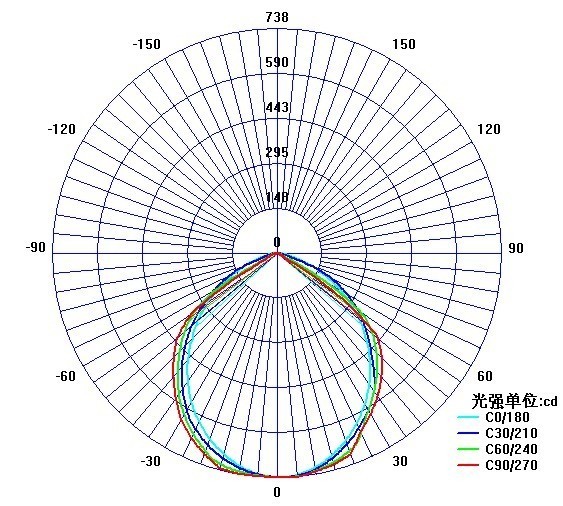

5、Light Distribution

Unique light distribution, better quality than conventional fluorescent lighting.

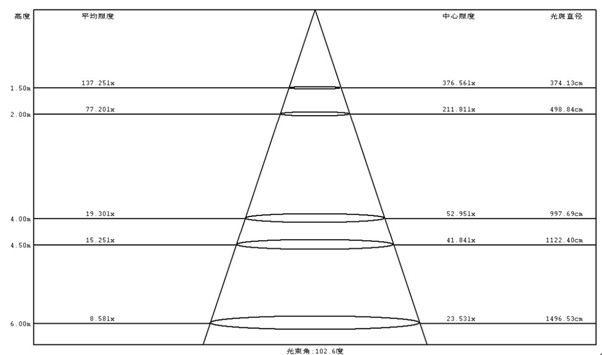

6、Light intensity map

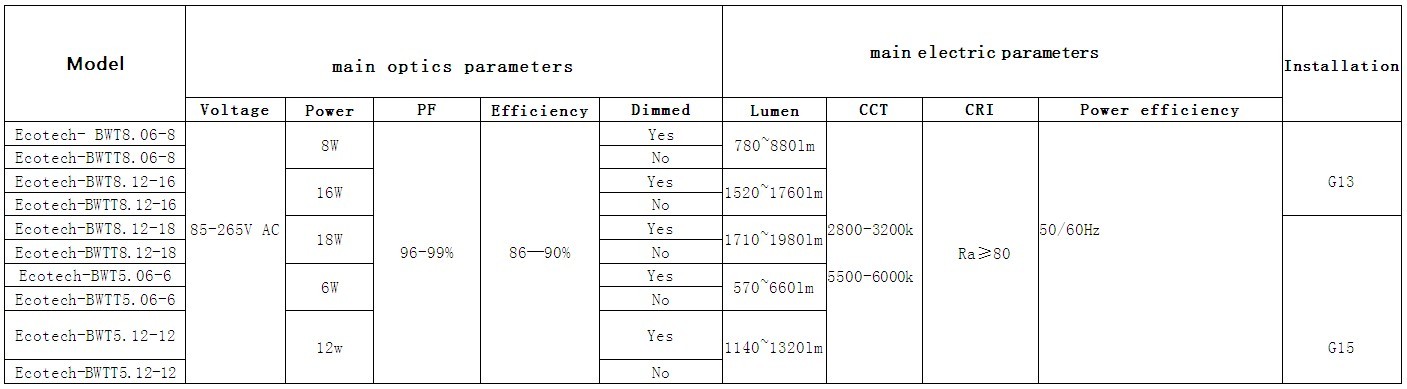

7、Parameter

8、Product Moder and Replacement
