Product Details

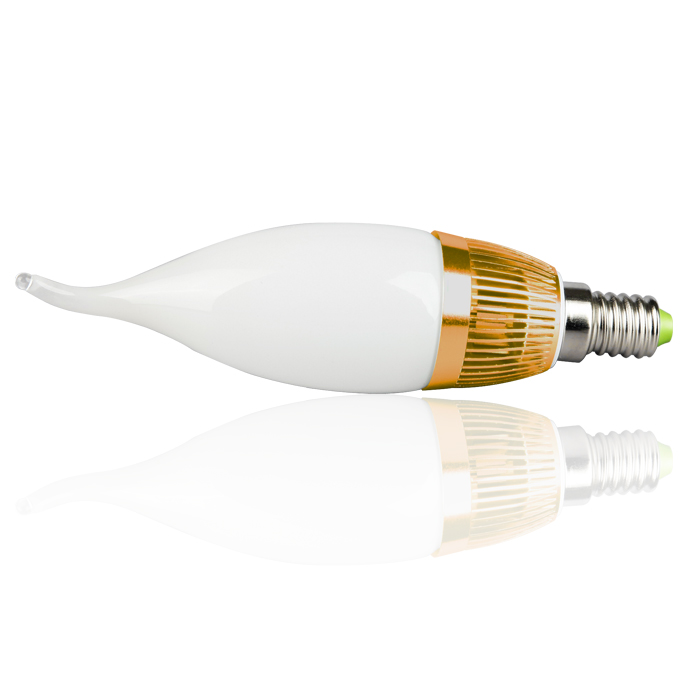

- Name: LED candle light
- Model: Ecotech -LZ-Series
- Specifications: 1w/3w
- Tel: 86-0755-82520108
- E-mail: myd@ecotech-sz.com.cn
Product Introduction
1、Product Description
Able to provide brighter light, making environment with attractiveness and style;
used in hotels, upscale clubs, auditoriums, and home.
2、Product Feature
Selection of high-quality LED light source, luminous flux maintenance rate more than 80 percent, long life span;
6063 aluminum, streamlined structure design, case temperature less than 45 degrees;
100 - 240V AC 50/60HZ power input, built-in isolated power supply;
translucent PC cover;
Reduce the carbon emissions by 35.89 kg (using 3000H / year, compared with halogen lamps.
3、Specification
model |
Optical parameters |
Electrical parameters |
Base |
||||||
Luminous flux |
color temperature |
CRI |
voltage |
frequency |
power |
efficiency |
PF |
||
Ecotech -LZ.1W |
95lm |
3000-3500K 5000-5500K |
Ra≥75 |
100~240V |
50Hz/60Hz |
1W |
≥88% |
≥0.9 |
E14 |
Ecotech -LZ.3W |
255lm |
3W |
4、Replacement solution
Model |
LED candle light(W) |
Life pan (h) |
Replacement Fluorescent light(W) |
incandescent lightlife(h) |
Erengy-saving |
Ecotech -LZ.1W |
1W |
30000h~50000h |
3-5W |
1000-3000h |
>80% |
Ecotech -LZ.3W |
3W |
8-9W |
>65% |

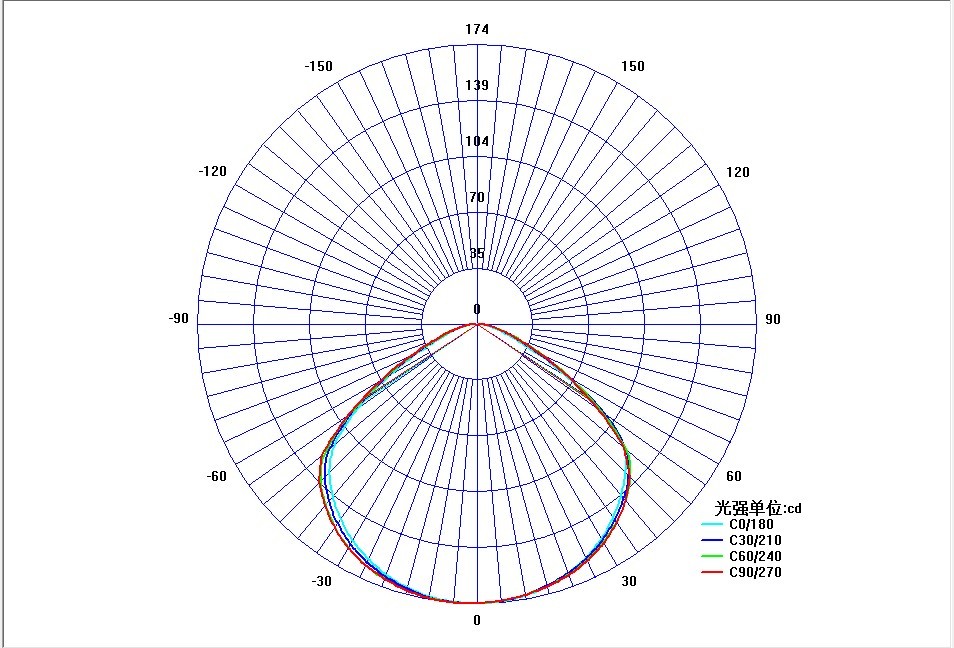

5、 Light distribution curve

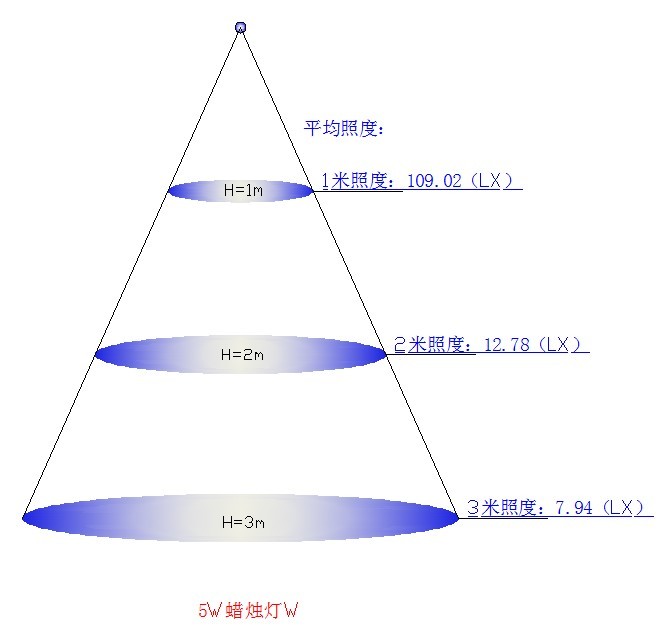

6、illuminance diagram
