Product Details

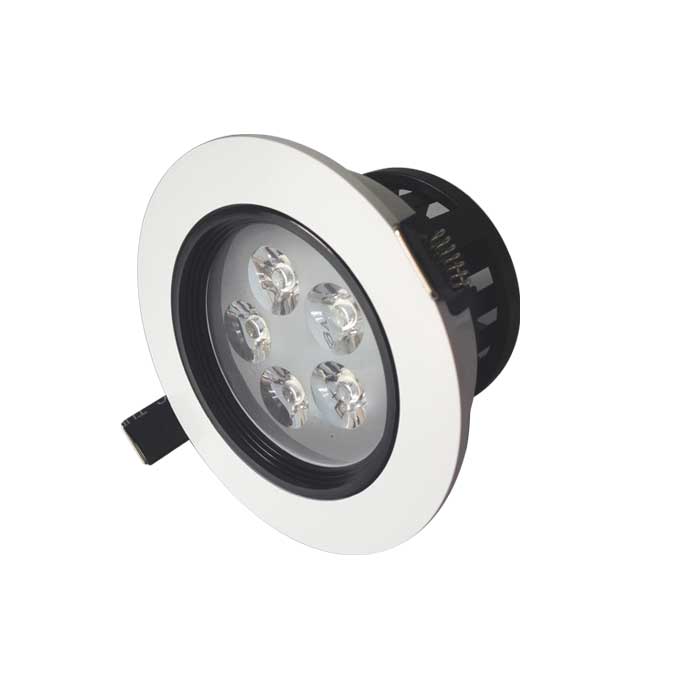

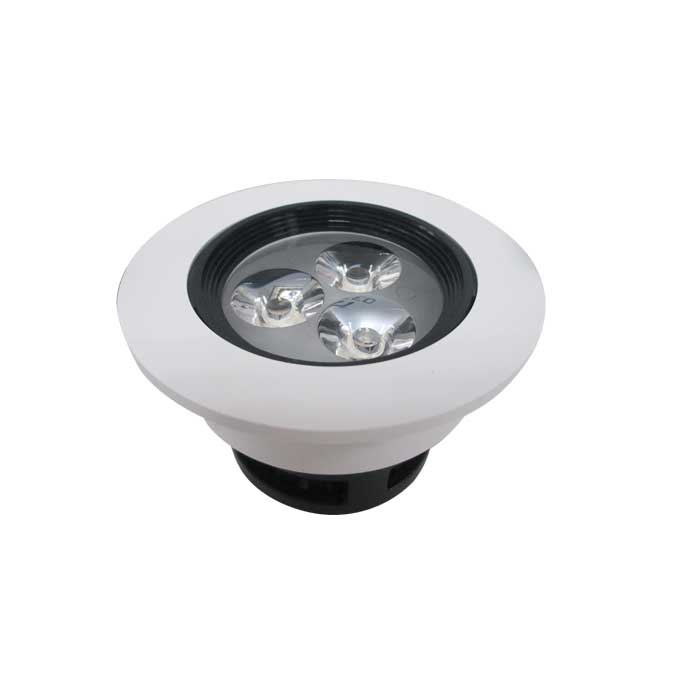

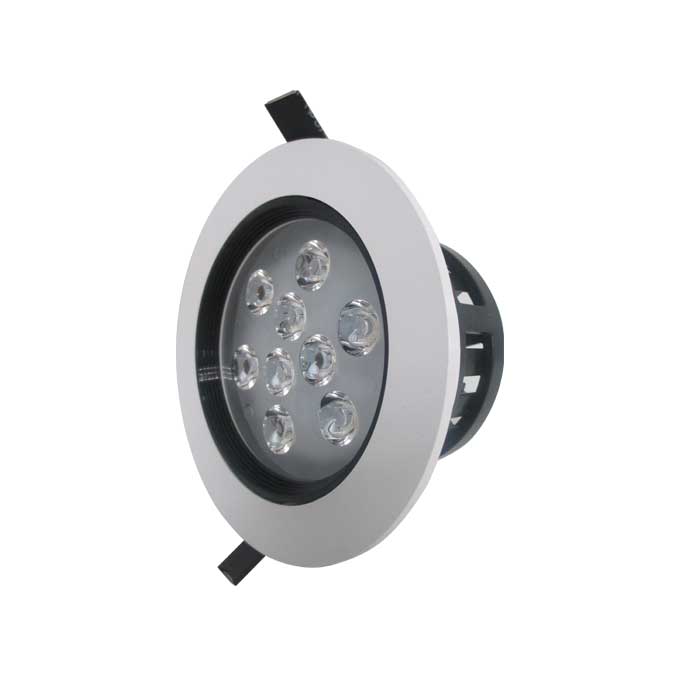

Name: LED ceiling light
Model: Ecotech-TS-Series
Specifications: 3w/5w/7w/9w/12w
Tel: 86-0755-82520108
E-mail: myd@ecotech-sz.com.cn

Product Introduction



1、Product Description
multi-angle spotlighting, no light pollution, better lighting effects;
Smart Dimming, a wider variety of lighting conditions;
multi-angle spotlighting, no light pollution, better lighting effects;
Smart Dimming, a wider variety of lighting conditions;

2. Features
 smart phones, tablet PCs, APP software allows online switch ON/OFF and lights  adjustment
Quality ultra-high brightness High Power LED, luminous flux maintenance rate more than 80%;
high-quality 6063 aluminum, good cooling structure design, case temperature less than 45 degrees, stable performance and longer life span;
100 - 240V AC 50/60HZ power input, external isolated power supply, safe and easy to replaceexquisite appearance, light angle 0-120 degrees adjustable , versatile utility; international standard size, easy to replace.

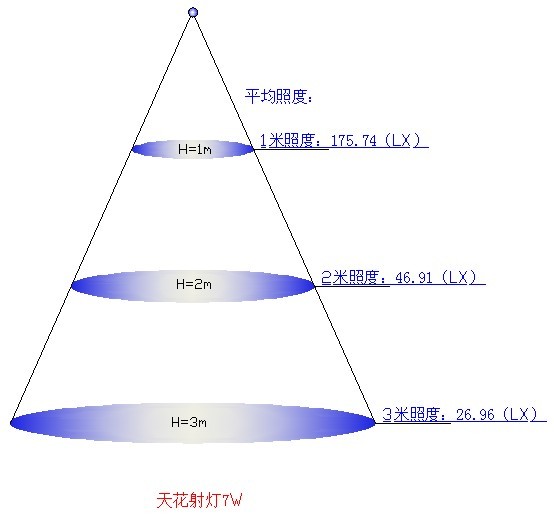

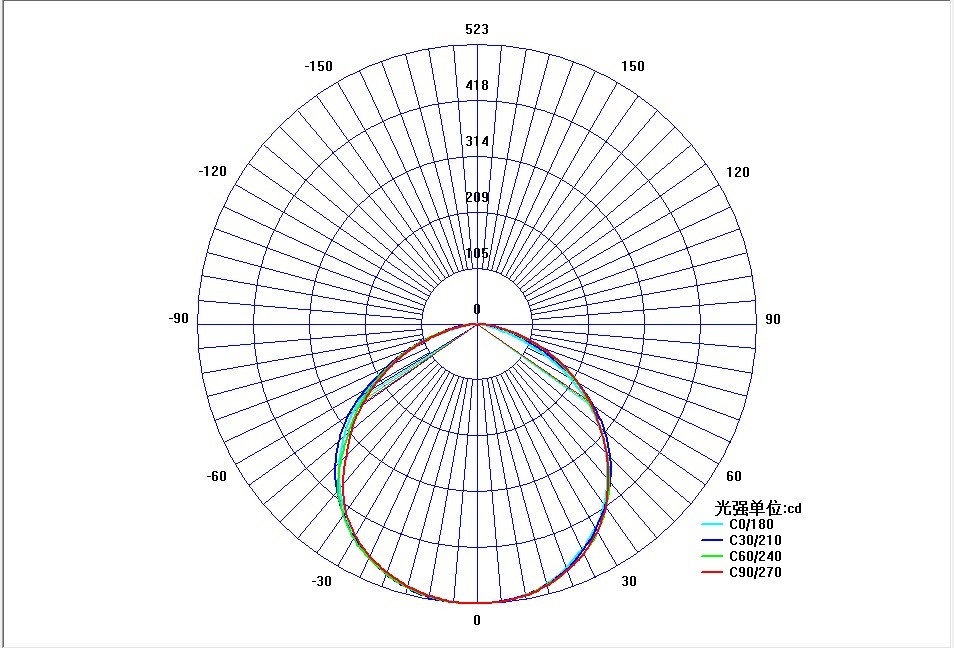

3、Light distribution curve and illuminance diagram





4、Specification and replacement solution

Model
Optics main parameters
Electric main parameters
installation hole size
Luminous flux
CCT
CRI
frequency
Voltage
Power
Dimming
PF
Ecotech-TS.3W
245lm
3000-3500K
5000-5500K

Ra≥70

50/60Hz

100~240V

3W
no
≥0.95
Φ68mm
H54mm
Ecotech-TTS.3W
yes
Ecotech-TS.5W
410lm
5W
no
Φ110mm
H80mm
Ecotech-TTS.5W
yes
Ecotech-TS.7W
520lm
7W
no
Φ110mm
H80mm
Ecotech-TTS.7W
yes
Ecotech-TS.9W
705lm
9w
no
Φ140mm
H90mm
Ecotech-TTS.9W
yes
Ecotech-TS.12
984lm
12W
no

Φ140mm
H90mm
Ecotech-TTS.12
yes





Moder
LED Ceiling light power

 life span
equivalent light power

equivalent light life span
energy
reduction
Ecotech-TS.3W
3W
30000h~50000h
20W
1000h
>65%
Ecotech-TTS.3W
Ecotech-TS.5W
5W
20W
>65%
Ecotech-TTS.5W
Ecotech-TS.7W
7W
35W
>65%
Ecotech-TTS.7W
Ecotech-TS.9W
9W
35W
>60%
Ecotech-TTS.9W
Ecotech -TS.12W
12W
50W
>60%
Ecotech -TTS.12W

5、Application

hotels, halls, shopping malls, offices, corridors, aisles, exhibition hall, museums, apartment
